Skeleton Container Trailer Chassis
Product Details

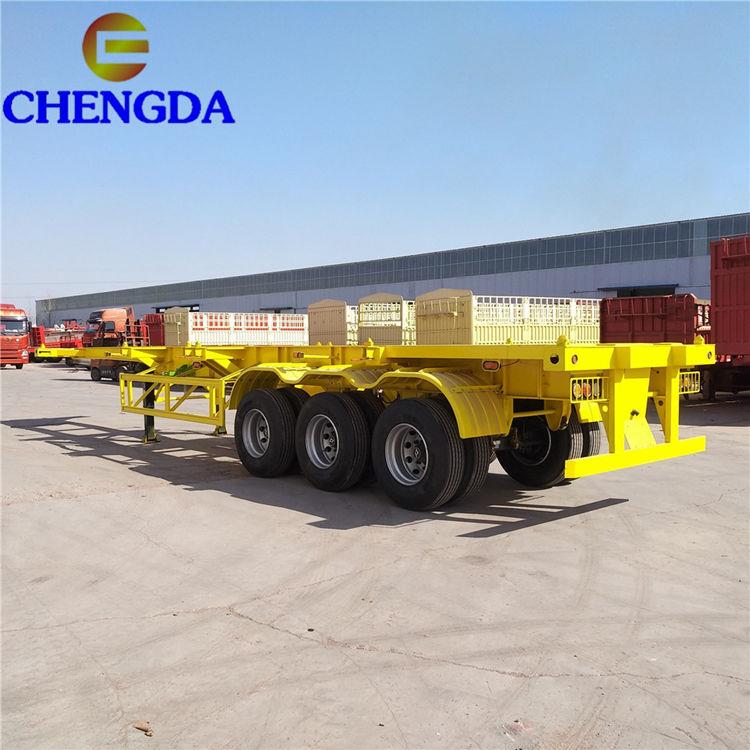

Chengda Brand Cheap 2 axles 3 axles 20ft 40ft skeleton container trailer chassis
Trailer Model | skeleton flatbed semi trailer |
Overall Dimension (Lx W x H)(mm) | 12500*2500*1560mm |
| Function | Carry 40ft or 2*20ft container |
| Main beam | The height of the beam is 500mm,upper plate is 14mm,middle plate is 16mm,down plate is 8mm. |
Loading Weight | 40Ton |
Axle Brand | 13TON FUWA Axle |
Suspension | 10 pieces spring steel suspension |
Tire Type and quantity | 12R22.5 12units |
Traction Pin | 50mm or 90mm |
Landing Gear | 28ton double speed |
Platform plate | 3mm |
Side beam | 16# box iron |
Container lock | 12pieces |
Spare tire carriers | 2 sets |
Tools box | 1 set |
Brake air chamber | 6 big dobule air chamber |
Electrical circuit | 24V,7 ways socket,one set 6-core standard cable |
