Product name SINOTRUK HOWO 8x4 12 wheeler 371 hp truck dumper tipper dump truck Product description SINOTRUK HOWO 8x4 12 wheeler 371 hp truck dumper tipper dump truck Shipping Transport the SINOTRUK HOWO 8x4 12 wheeler 371 hp truck dumper tipper dump truck By flat rack, bulk cargo or Roll-roll,...
Product name

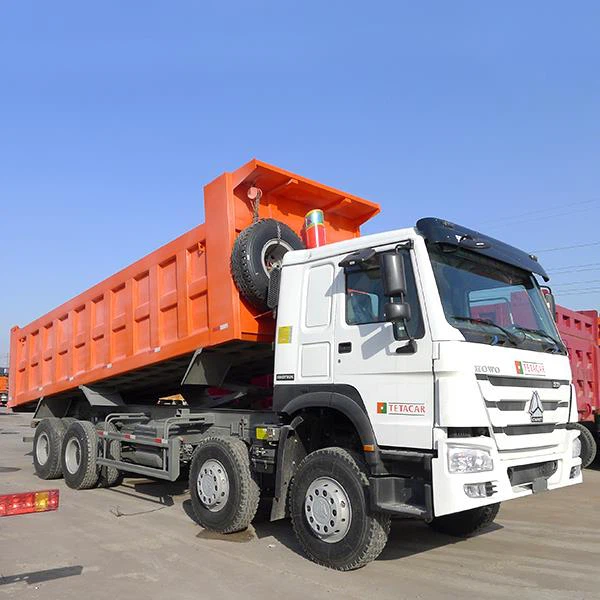

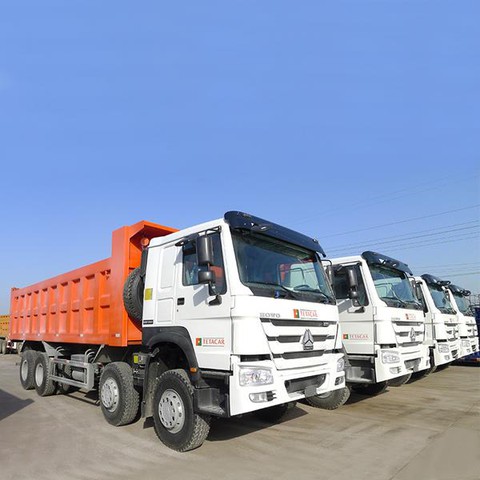

SINOTRUK HOWO 8x4 12 wheeler 371 hp truck dumper tipper dump truck
Truck Model | ZZ3317N4267 | |||
Truck Brand | SINOTRUK-HOWO | |||
Driving Type | LHD | |||
Dimension (Lx W xH)(unloaded)(mm) | 11050x2496x3450 | |||
Cargo body size (L*W*H, mm) | 8000x2300x1500 | |||
Cargo body thickness (mm) | bottom: 8mm, side: 4mm | |||
Lift type of Carriage | Front Lifting | |||
Approaching angle/Departure angle (°) | 19/19 | |||
Overhang (front/rear)(mm) | 1500/2200 | |||
Wheel base (mm) | 1800+4200+1350 | |||
Max speed (km/h) | 75 | |||
Curb weight (kg) | 15440 | |||
loading weight (kg) | 40000 27.6m3 | |||
Fuel tanker capacity (L) | 300L or 600L | |||
Fuel consumption (L/km) | 20-40 L/100 km | |||
Clutch | Single-plate dry clutch Φ430mm | |||
Engine Model | Fuel type | Diesel | ||
Horse Power, max (kw/rpm) | 371HP | |||
Emission | EURO II | |||
Model | WD615.47. water-cooled, four strokes, 6 cylinders in line with water cooling, directly injection | |||
Transmission | Model | HW19710,10 forwards and 2 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
Parking brake | spring energy, compressed air operating on rear wheels | |||
Auxiliary brake | Engine exhaust brake | |||
Steering system | Model | ZF8118 hydraulic steering with power assistance | ||
Front axle | HF9 | |||
Rear axle | HC16 | |||
Color | Optional | |||
Tire | 12.00R20 Radial tires | |||
Tire quantity | 12+1 spare=13 tires | |||
Electrical system | Battery | 2X12V/165Ah | ||
Alternator | 28V-1500kw | |||
Starter | 7.5Kw/24V | |||
Cab | HW76 cab, one sleeper with air-condition |
Product description
SINOTRUK HOWO 8x4 12 wheeler 371 hp truck dumper tipper dump truck
Shipping
Transport the SINOTRUK HOWO 8x4 12 wheeler 371 hp truck dumper tipper dump truck
By flat rack, bulk cargo or Roll-roll, You can choose the best one for delivery
Workshop
Contant Details
Sales Manager: Zoe Lee
Address: Jinan,Shandong Province,China
E-mail: howo@sinotrucksale.com
Whatsapp: +86-18253112995
