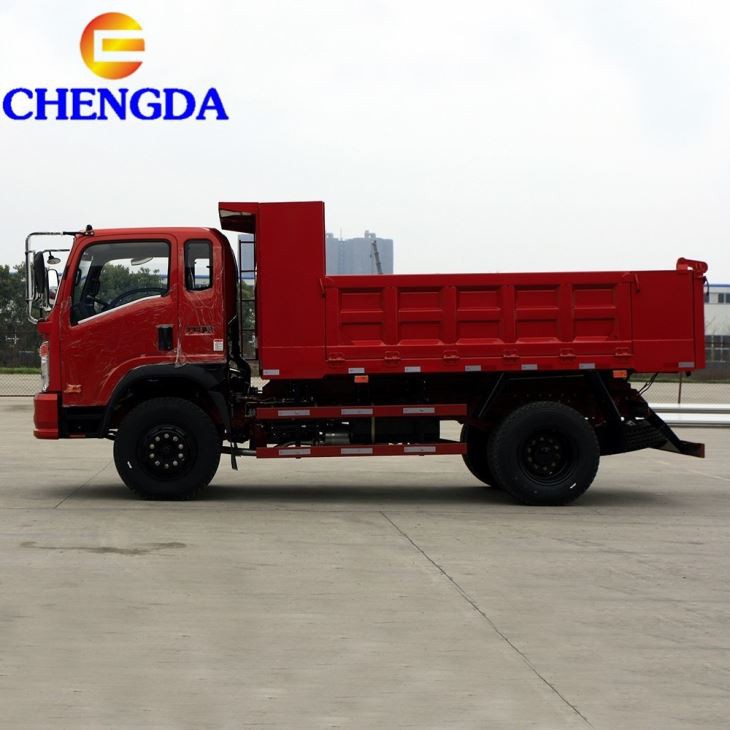

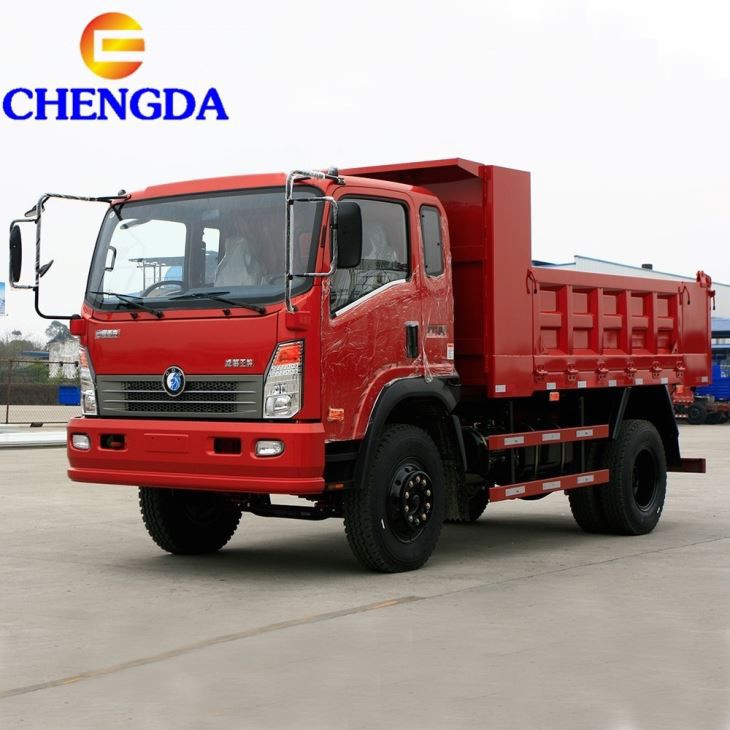

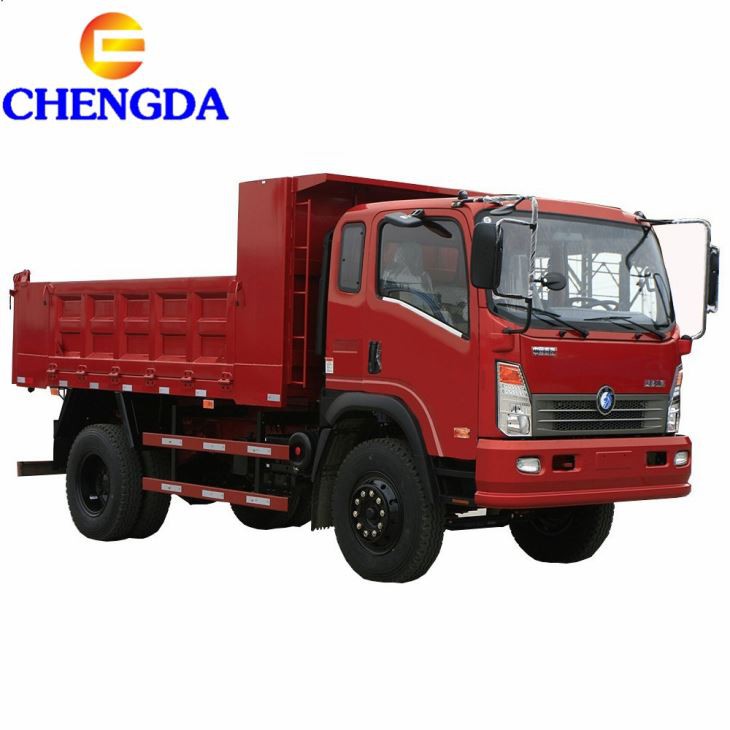

Mini Dump Truck

According to clients' requirements, we can customize different loading capacity and volume. The popular dump truck models include: sinotruck HOWO 336hp 6X4 10 wheel 16 cubic meters dump truck, sino truck 371hp 10 wheeler 30 tons 20 cubic meters dump truck, SINOTRUK howo 8X4 12 wheeler 40tons end dump truck and so on.

Product Details

mini dump truck

Product Description



CDW777 SERIES

Model

CDW3110A2C3

Cab and Panel

2080 cab,Double torsion bar



Engine

Type: YC4E160-33

Type:4 cylinder, direct injection, water cooling,4 stroke,Euro III

Max horse power: 160hp

Rated revolution: 2600 rpm

Max. Torque: 520 N.m at 1300~1700 r/min

Displacement: 4.257 L

Cylinder bore×route: 110×112 mm



Gearbox

Type: HW90710,Manual with synchro, 10 forward and 2 reverse

Ratio: 11.987,8.973,6.748,4.644,3.805,2.581,1.932,1.453,1,0.819,

9.989(R1),2.151(R2)



Axle

Front type: 145D1A,driven front axle

Rear axle type: 153N1,Pipa Style,casting axle,with differential

Rear axle ratio: 6.5



Frame

Frame: 280/10,ladder shaped frame,280mm height,800mmwideth,10mm thickness

Front overhang: 1061-Ⅱ++,11pcs,telescopic shock absorber

Rear overhang: 153+,11pcs main spring and 8pcs assistance spring

Fuel tank:Iron steel,Volume 150L



Steering

Type:Steering wheel

Steering diameter:450mm

Max. cycles:5.5



Brake system

Motor brake:Double Circuit air brake

Parking brake: Brake

Auxiliary brake: Exhausted Brake

Tyre

Tyre:9.00-20×7

Electronic

Voltage: 24V,cathode ground connection



Dimension

Wheelbase: 3650 mm

Wheeltrack: 1750 mm/ 1725mm

Overhang: 1260 mm / 1490 mm

Approaching angle/Departure angle: 24 / 23

Inner dimension: 4140mm×2200mm×800mm

Total dimention: 6395 ×2300×2630mm

Lifting

Single cylinder 180mm×660mm



Weight

Rated mass:4800Kg

Load capacity:10000 kg

Total mass:14800 kg

Front axle load capacity:4590 kg

Rear axle load capacity:6905 kg

Detail of product

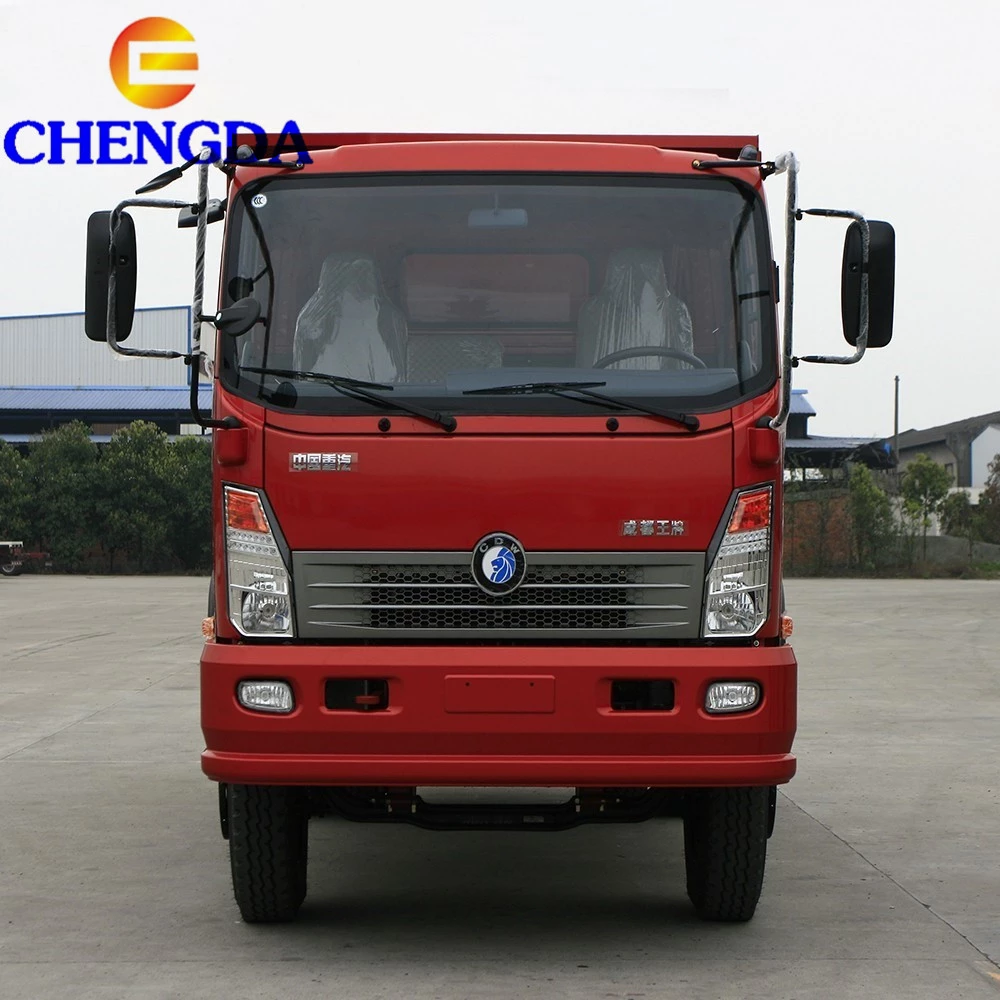

Sinotruk CDW Brand 6 wheelers 10cbm DUMP truck light truck

Sinotruk CDW Brand 6 wheelers 10cbm DUMP truck light truck

Sinotruk CDW Brand 6 wheelers 10cbm DUMP truck light truck

                                                                                 More Detail





Packing & shipping


Packing:Nacked or Waxed before delivery.

Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.

Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.

Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.







Company Information

Shandong Chengda Trailer Manufacturer Co.,Ltd.

Shandong Chengda Trailer Manufacturer Co.,Ltd. established in 2005 is one of the qualified manufacturers of various trailers. Integrated production, scientific research & development and professional sales teams, all those advantages can provide the full service of trailers, semi-trailers, tractor head, dump truck, engineering machinery and trailer parts, our company is a leading provider in this industry, with annual export value reaching above 50million dollars and revenue almost 600 million yuan RMB.With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built a long business relationship with many world famous enterprises such as SINOTRUK,SHACMAN,FAW,DFAC,XUGONG Group,LIUGONG Group,SEM Group etc. Besides mature after-sale systems, we can meet different needs of customers both home .



Our factory





Our advantage

1.We have 13 years history in manufacture various trailers.We have our own factory, in this

   case,we can give your a more reasonable price with high quality.

2.Integrated production, scientific research & development and professional sales teams, all

   those advantages can provide the full service of trailers, semi-trailers, tractor head, dump

   truck, engineering machinery and trailer parts.

3.You can totally trust us with the BV,ISO,3C,WMI certification we have.

4.We will design the trailer or truck according to your requirement.We will always try our best

   to give you what you want.



Our services

  •  Reply your inquiry in 12 working hours;

  •  Experienced staffs answer all your questions;

  •  Customer’s design is available for certain products(OEM);

  •  Spare parts for all types of engine machinery with reasonable price;

  • Different kinds of semi trailer can be provided with competitive price.

We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers  and nice quality to ensure the trucks and trailers being in good working conditions.



Certifications

Sinotruk CDW Brand 6 wheelers 10cbm DUMP truck light truck

FAQ

1. Q: Are you a manufacturer or trading company?

      A: We are direct manufacturer, we have our own factory in Shandong province.

 2. Q: How can you ensure the quality of the goods?

     A:Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by Chengda group,every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.

 3. Q: How do you transport the semi trailers?

     A: We transport the semi trailers by bulk,container or ro to ro. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.

 4. Q: Can you satisfy my special requirement?

     A: Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!

 5. Q: Can we visit your factory?

     A: Yes, warmest welcome to visit our factory.  We can pick you up in Jinan Airport or Jinan train station.
