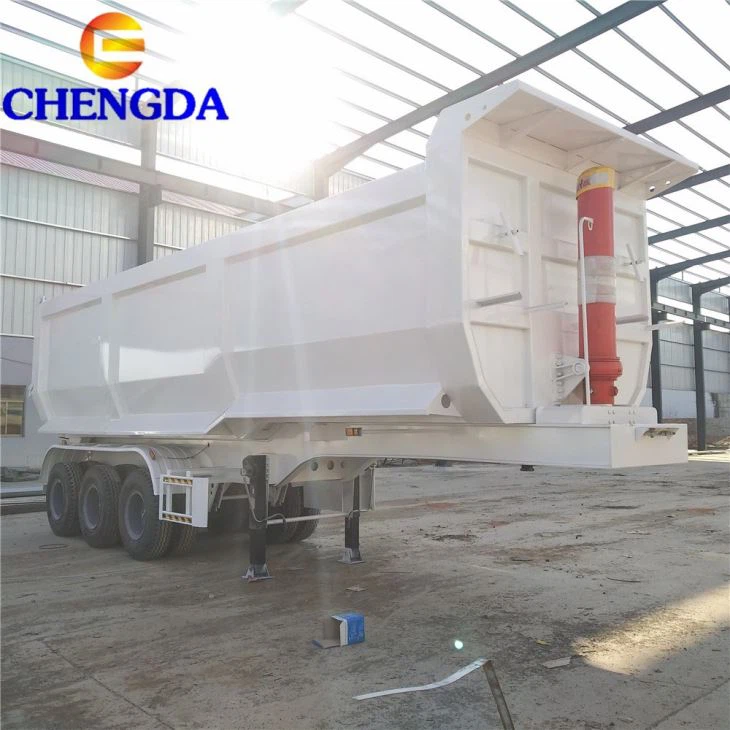

Dump Box Trailer

1. Dump Box Trailer adopts a standardized and modular welding process, and standardized operations are carried out on the length of the welding seam, the position of the welding seam and the reservation, so as to ensure the perfect welding standard of each trailer.

2. 100% of the whole trailer is made of full-thickness wear-resistant steel, which is more wear-resistant and anti-manufacturing.

3. Effectively solve industry problems such as welding cracking of tipper trailers, deformation of carriages, rapid tire wear, and unsynchronized lifting.

Chat Now

Product Details

The main components of the dump box trailer are processed by advanced equipment, the accessories are selected from domestic famous brands, the production process is advanced, the box body is made of high strength cold-rolled corrugated steel, the box height and size provide a variety of options, large loading space, long service life.

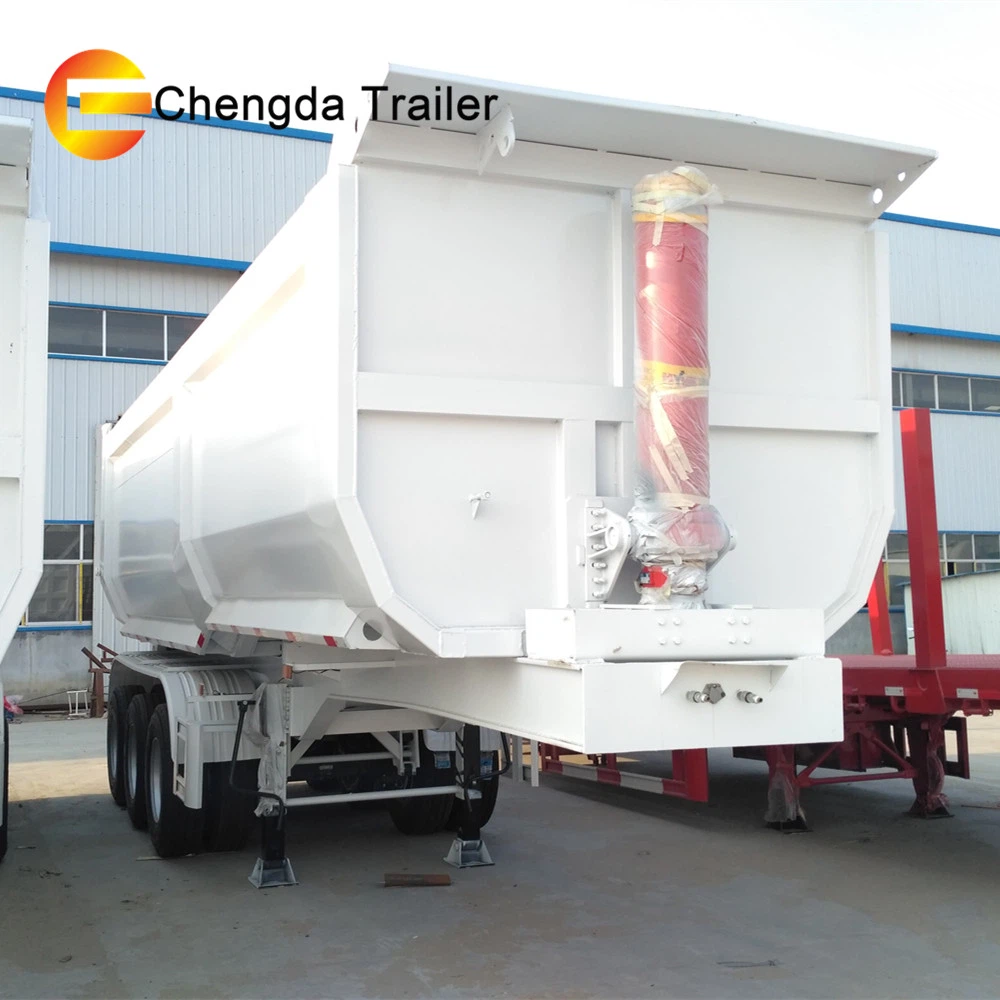

Tipper trailer (3)

dump trailer (11)

Advantages of dump box trailer

1. The axles of the dump box trailer are made of high-quality axles produced by professional manufacturers, which have strong bearing capacity, are not easily deformed, and have strong anti-torsion force.

2. Dump box trailer adopts advanced computer-aided design and manufacture, scientific design, reasonable distribution of focus points, and more stable load-bearing of the carriage.

3. The new suspension system is adopted, the load of each axle is balanced, the angle design of the system tie rod is reasonable, the impact resistance is strong, and the tire wear is effectively reduced.

Configure

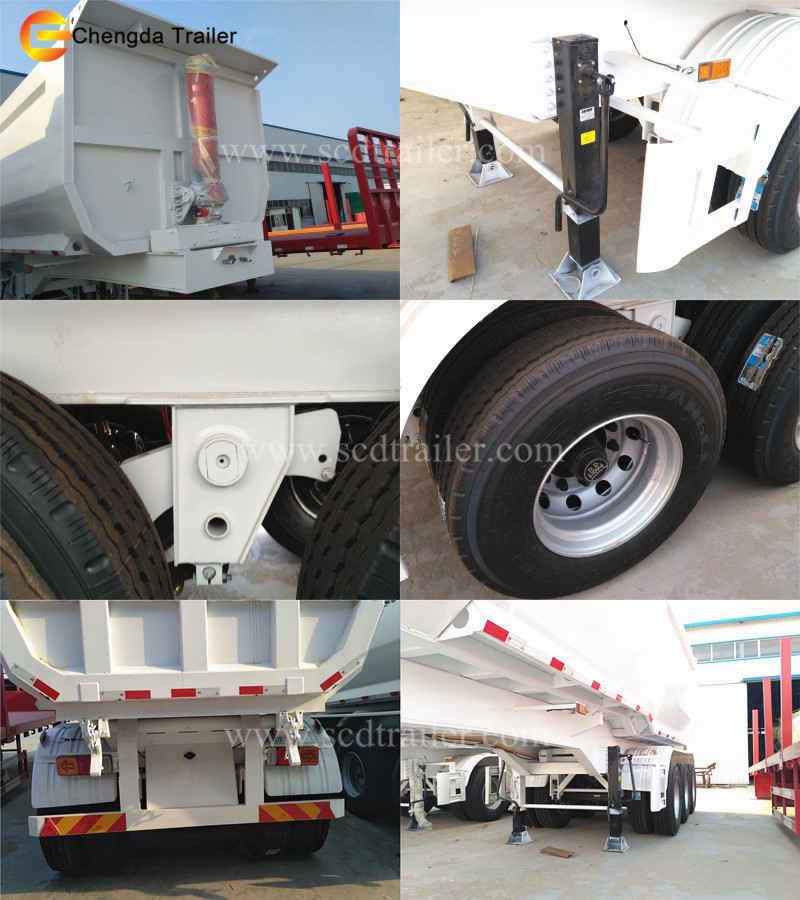

Tipper trailer (8)

Dimension(Lx W x H)	11300x2500x3600mm
Inner Dimension	10500x2300x1500mm
Wheelbase(mm)	5100+1320+1320mm
Lifting	HYVA brand, hydraulic lifting system
Suspension system	Mechanical suspension, Three axis series balanced steel plate spring suspension
Steel Spring	10/10/10 leaf spring suspension
Curb Weight(kg)	12000
Thickness	bottom:6mm, side:4mm
Tire Type and quantity	1100R20 12units
Landing Gear	FUWA brand, 28ton
Brake air chamber	Two double and two single chamber

If you are interested in further details, welcome to contact us ,thanks !
