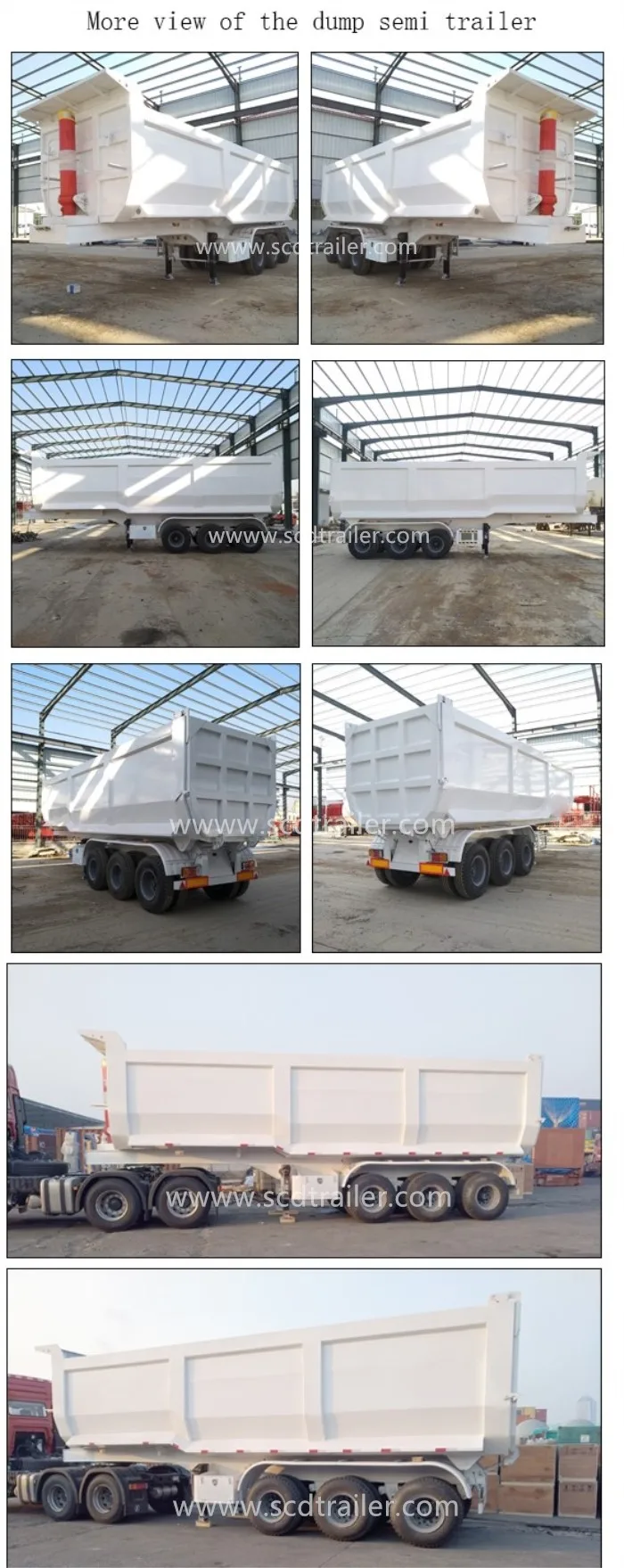

Factory 3 Axle Tipping Dumper Truck Tipper Trailer Dump Semi Trailer

Model

3 axle 40m3 dump trailer

Function

Transport sand, stone, gravel

Dimension

Overall Size (L×W×H)mm

9800×2550×3860mm

Inner Size (L×W×H)mm

8500×2330×2000mm

Wheel base

6870+1310+1310mm

weight

Payload

68,000kg

Tare weight

Approx12,000kg

G.V.W.R.

Approx 80,000kg

Body details

Main beam

Material Q345 carbon steel, upper plate 18mm, down plate 18mm, middle plate 8+8mm.

Body thickness

6mm

Bottom thickness

8mm

Hydraulic System

Full set of HYVA Hydraulic System 202

Frame

Axle

heavy duty, 3×13Ton capacity, FUWA brand

Suspension

Leaf spring suspension, 90mm×16mm×10pcs

Tire

12R22.5 12units Chengda Brand

Kingpin

50mm/90mm removable

Landing gear

Yahua brand, 28ton, double speed, heavy duty

Tool box

1pcs

Spare wheel carrier

2pcs

Electrical system

Voltage

24Volt

Receptacle

7 way socket SAE standard,China

Front marker lamp

white

Side marker lamp

white&red

Rear lamp

red

Turn signal lamp

Amber

Wiring

Electric cable protected by PVC conduit on main frame

Brake system

Brake

Dual line pneumatic brake,SAE hose and connector,no ABS

Brake air chamber

Six big chamber

Painting

Shot blast at Standard SA 2.5 prior to application of primer,polyurethane top coat.Total DFT not less than 100um

Color

As customer requirement
