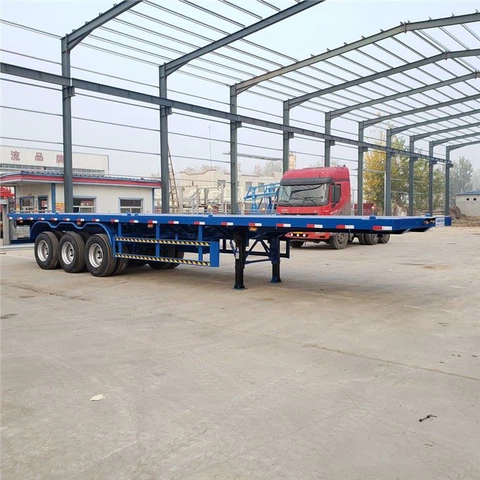

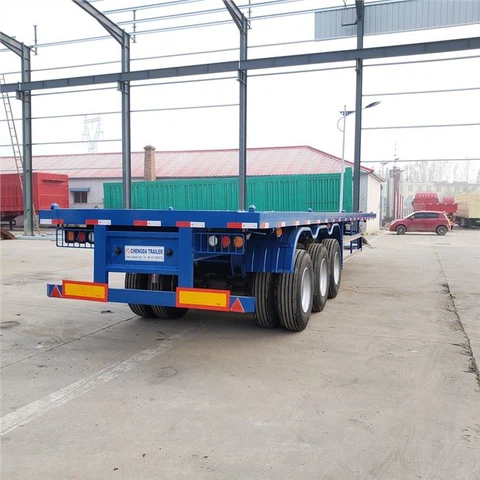

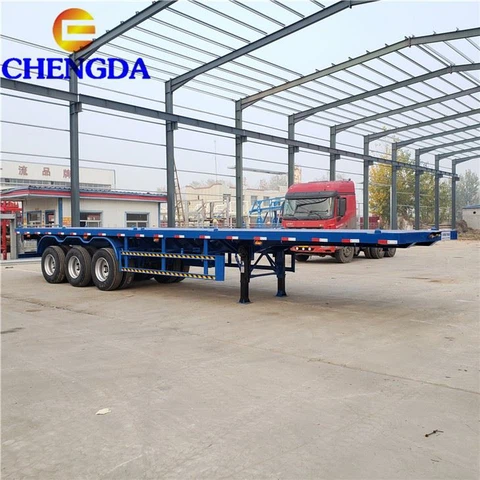

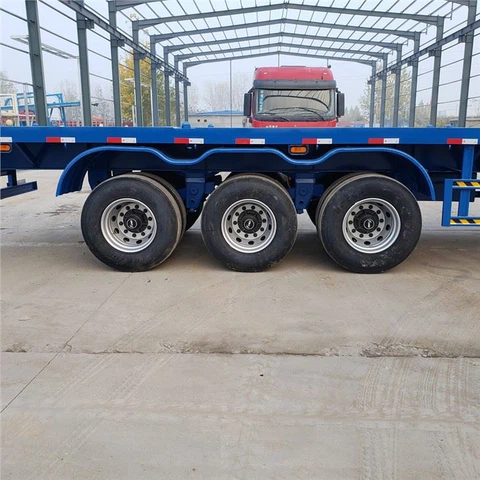

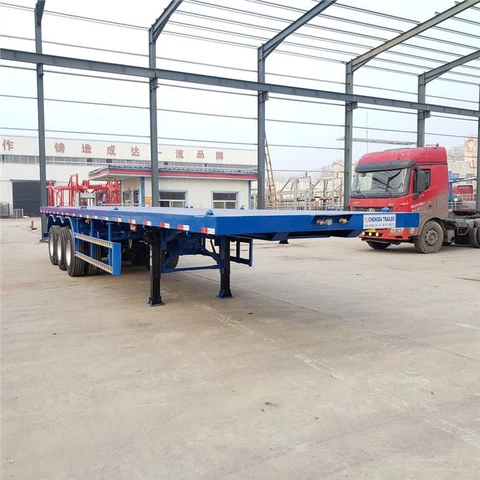

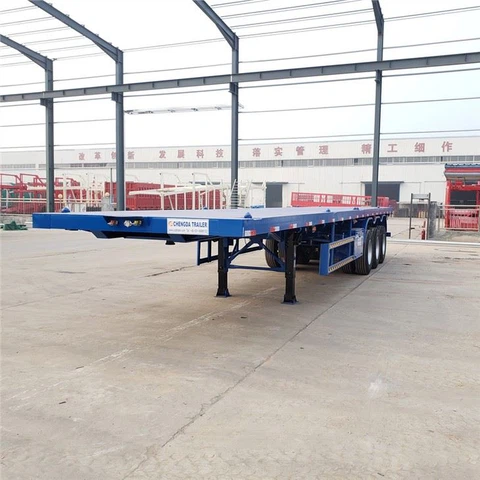

3 Axle Flatbed Semi Trailers
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com
Product Details
3 axle flatbed semi trailers are one of the most popular types of cargo trailers. These semi-trailers are widely used to transport rebar, lumber, pipes, fabrication materials, and other types of heavy and long loads. Due to their unique design, they offer great convenience and flexibility in loading and unloading operations. They also provide excellent stability and safety during transport, making them ideal for transporting different types of cargo over long distances.
Features of 3 axle flatbed semi trailers
1. Capacity:
Our flatbed semi-trailers have a capacity of 40-60 tons depending on the model.
2. Design:
Our semi-trailers are designed with flatbed and convertible structures for easy loading and unloading. They also have an adjustable front axle to easily distribute the weight of the load on the trailer. The trailer is also equipped with safety devices such as brakes and lights to ensure that the cargo reaches its destination safely.
3. Material:
Made of high-quality materials like steel and aluminum, our flatbed semi-trailers are durable and able to withstand harsh weather conditions.
4. Size:
Our semi-trailers come in different sizes, ranging in length from 20 feet to 53 feet.
5. Loading capacity:
Our trailers have a loading height between 0.6 and 0.8 meters and are therefore compatible with different types of loading equipment. They also have a maximum load capacity of 30-40 tonnes, depending on the model.
Specification of 3 axle flatbed semi trailers
| Trailer Model | 3 Axle Flatbed Trailer |
| Overall Dimension(L x W x H)(mm) | 12500 * 2500 * 1600 |
| Loading Weight | 40000kg |
| Axle | 3*13Ton Axle |
| Main Beam | Q345 carbon steel, the height of the main beam is 500mm, the upper plate is 14mm, the down plate is 16mm, the middle plate is 8mm |
| Platform Plate | 3mm Diamond plate |
| Side Beam | Q235 16# channel steel |
| Suspension System | Mechanical Leaf Spring Suspension |
| Leaf Spring | 90(W)mm*13(Thick)mm*10Layer |
| Container Twist Locker | 12pcs container locker |
| Tire Type and Quantity | 12R22.5 12units |
| King Pin | 50#/90# |
| Spare Wheel Bracket | 2pieces |
| Tool Box | 1 standard |
| Landing Gear | Standard 28ton single action supporting legs |
| Brake System | Dual line braking system |
| Brake air chamber | six double chamber |
Advantage of 3 axle flatbed trailers
1. Versatility:
Flatbed semi-trailers are versatile and can accommodate different types of cargo, including long loads and heavy loads. They are also compatible with different types of loading equipment including forklifts, cranes, and winches.
2. Easy loading and unloading:
The flatbed semi-trailer adopts a flat structure, which is convenient for loading and unloading. This feature significantly reduces loading/unloading times and increases operational efficiency.
3. Cost savings:
Flatbed semi-trailers offer cost savings compared to other types of trailers, such as enclosed trailers. They are economical to maintain, and their convertible construction means they require less material to build.
4. Security:
Our flatbed semi-trailer is equipped with safety devices such as brakes and lights to ensure that the cargo reaches its destination safely. They also provide excellent stability during transport, reducing the risk of accidents.
In conclusion
Our 3 axle flatbed semi trailers are ideal for transporting different types of cargo over long distances. They offer great convenience and flexibility during loading and unloading operations, excellent stability and safety during transport, and are economical to maintain. With our high-quality materials and skilled workforce, we are committed to providing the best semi-trailers to our customers. Trust us to deliver your goods safely and efficiently.
