2 Axle Container Chassis Trailer
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com
Product Details
2 axle container chassis trailers can be used for 20ft, 40ft, 45ft, or other special-size container transportation. From 2 shafts to 4 shafts or more, the capacity ranges from 20T to 80T to suit all harsh working conditions around the world.
Specification of 2 axle container chassis trailer
Size, color, and logo can be customized. Please contact me if you need more details. We will provide the best service and price.
| Product Name | Container Semi Trailer |
| Tare Weight | About 5.5T or 3.2T |
| Outer Side Dimension | 7500-12450mm*2490mm*1557mm |
| Loading Capacity | ≤ 45 T(40FT) ≤ 30T(20FT) |
| Chassis Parts | |
| Axle | 13 T, FUWA /BPW /Huajing Brand/GV Brand |
| Rim | 9.00-22.5 |
| Tire | 12.00R22.5 315/80R22.5 |
| Suspension | Mechanical suspension (German type or American type) Or Air suspension (China brand or BPW brand ) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
| Kingpin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support Leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main Beam | Height: 500mm,.upper plate is 14mm, the middle plate is 8mm, the down plate is 16 mm(thickness), and the material is Q345B steel. |
| Brake Chamber | T30/30+T30 Spring brake chamber(TKL brand); One piece of 40L air tanks |
| ABS | optional |
| Twist Locks | Four, Eight or Twelve pieces (Lifting type or Twist Screw Type) |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7ways(7 wire harness) |
| Toolbox | One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner, and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive paint, and 2 coats of final paint. |
| Shipping Terms | By bulk cargo carrier, RORO, or 40HQ container. |

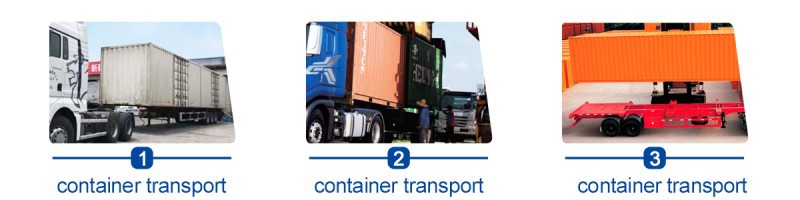

Application of container chassis trailer
2 axle container chassis trailer is mainly used for ships, hubs, bridges, highways, tunnels, and multimodal transport supporting logistics systems.
FAQ
Q1. What is the advantage of your company?
A1. As a manufacturer, Chengda Group has been focusing on semi-trailer manufacturing since 2005. Advanced equipment, a skilled engineering team, and experienced staff ensure to provide our business partners with high-performance products.
Q2. Why should I choose your 2 axle container chassis trailers?
A2. Our products are high quality and low price.
Q3. Can the logo and color be customized?
A3. Yes, we welcome you to sample customization.
Q4. Is there any other good service your company can provide?
A4. Yes, we can provide good after-sales and fast delivery.
Q5. What is your MOQ?
A5: No MOQ in most cases.
Q6. What about the delivery time?
A6: We have some materials in stock, which can ensure fast shipment for small-batch orders. For customized orders, delivery time is usually within 15 working days after payment is received.
