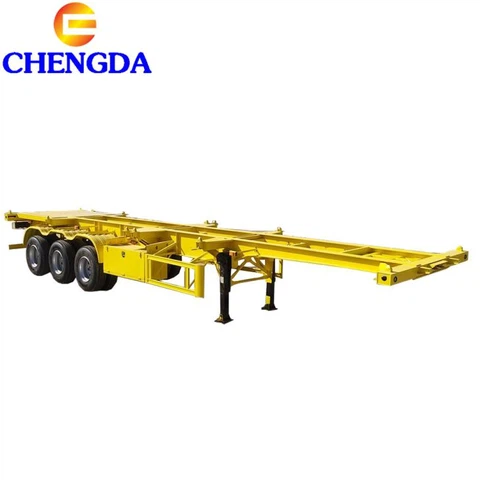

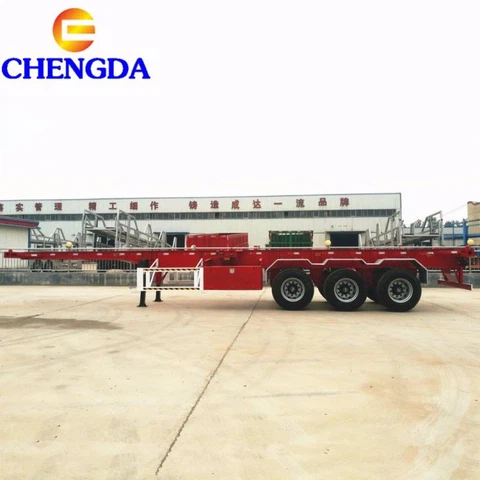

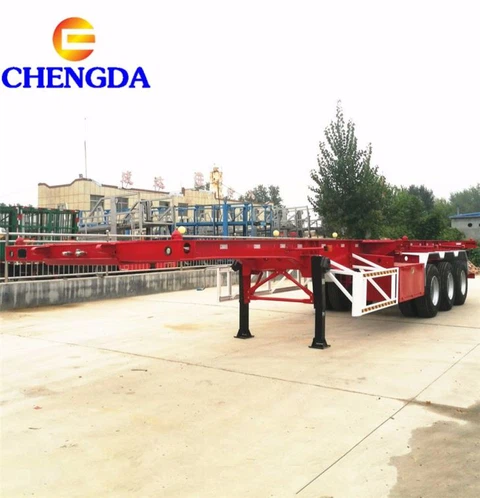

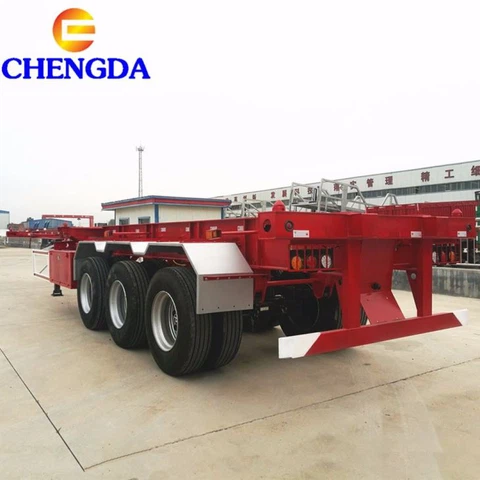

2 Axle Skeleton Semi Trailer
3 Axle Skeleton Semi Trailer
Dimension and Weight
transport 1x20ft, 2x20ft, 1x40ft container
height of the beam is 500mm,
upper plate is 14mm,
down plat is 16mm,
middle plate is 8mm.
3x13Ton ZY brand
12R22.5, 12 pcs. Taitong brand
9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Chinese standard 24V lighting system
Dual line pneumatic brake, no ABS
Brake air chamber
6 units T30/30 Double brake chambers
Emergency relay valve
2” and 3.5” removable Kingpin,
bolted in type 500mm from the front face of the front bolster
Yahua brand 28ton
external two speed telescopic manual operation
2,500mm behind the kingpin location
1pcs, One crank and one shaft head wrench
Steel mud guard and front mudguard
Spare wheel carriers

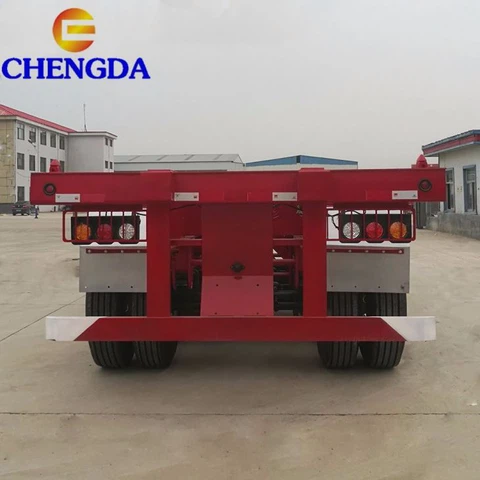

Rear bumper with adjustable height
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core electric cable protected by PVC conduit on main frame
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. Waxed
Nude, Polish with wax before shipping
1.Does your company is a factory or trade company?
We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
2.Whats the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3. What’s your MOQ?
One unit trailer or truck.
4. How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
bulk or container.
5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
