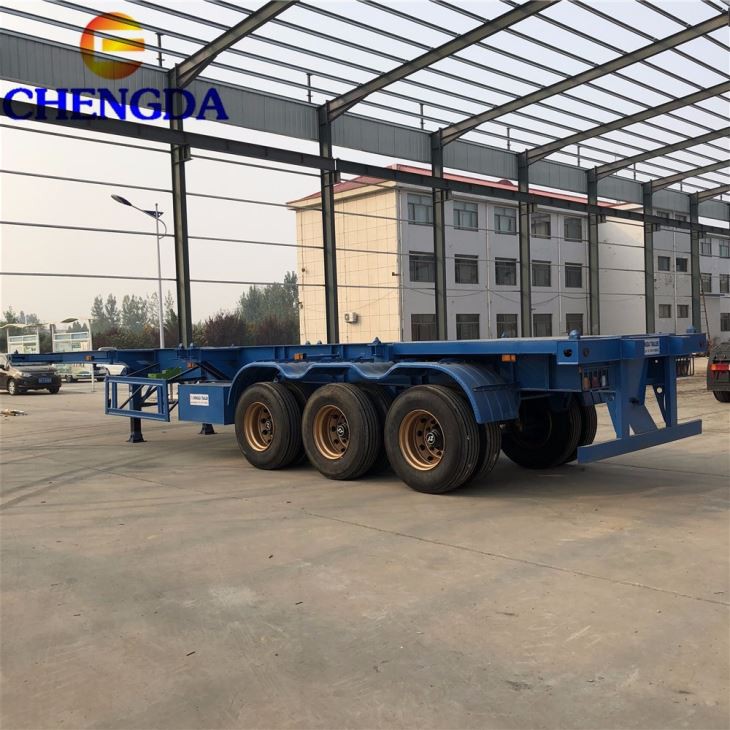

The chassis skeletal semi trailer, also known as the multi-transport chassis or skeleton trailer, is a special semi-trailer. It is basically a wheeled metal frame. The container can be installed on it for highway transportation.


Our container semi-trailer chooses Q345B carbon high-strength steel materials. We use parts of world-renowned brands, such as Jost, and Weibco brake valves.

chassis skeletal semi trailer details


We can also produce semi-trailers, such as flat trailers, skeleton trailers, dump semi-trailers, etc. The trailer will be checked before spraying to ensure that each detail is in a good state.


We are manufacturers, providing customized services, and designing every requirement for customers. Our design capabilities have reached a domestic first-class level, rich production experience, and a short delivery period.


Our company has passed the ISO9001 quality system certification, and the low chassis trailer produced in China has occupied a high market share in Africa and Russia. Our telephone service will serve you 24 hours.

Certificate


Parameter of chassis skeletal semi trailer


Payload

60 tons

Dimension

12500length*2500width*1510height(mm)

Main Beams

Beam height 500mm, Beam Thickness 16/8/18(mm)

Checker Plate

3mm

Axle

Three pieces, FUWA 13 tons

Landing Gear

FUWA Brand

King Pin

JOST 90# and 50#, are adjustable, you can change them according to your needs.

Suspension

Mechanical suspension

Leaf Spring

90(W)mm*13(Thickness)mm*10layer

Braking System

WABCO

Rim

9.0R22.5

Tire

12.00R22.5(13pcs)

Twist Locks

Qty 8 retractable ISO standard type to be provided suitable for mounting 1 x 40 feet or 2 x 20 feet containers

ABS

4S2M

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 ways(7 wire harness)

Painting

Complete chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2 coats of final paint

Accessories

1 standard toolbox

Weight Distribution

a.At Kingpin Approx 30 – 35 % of GW
b.At the Rear Axle Approx 65 – 70 % of GW

Electrical System

24V, 7-pin connector with the 7-core cable going all the way to the water-sealed junction box at the rear end


Our Service

1. Apply advanced equipment and experienced workers throughout the production process to ensure the quality of the chassis skeletal semi trailer.

2. We have passed ISO9001: 2008, CCC, BV, SGS, and TUV.

3. We have more than 20 years of experience and a strong engineering team. We are manufacturers. We can design products according to your special requirements.

4. We have safe after-sales service.
