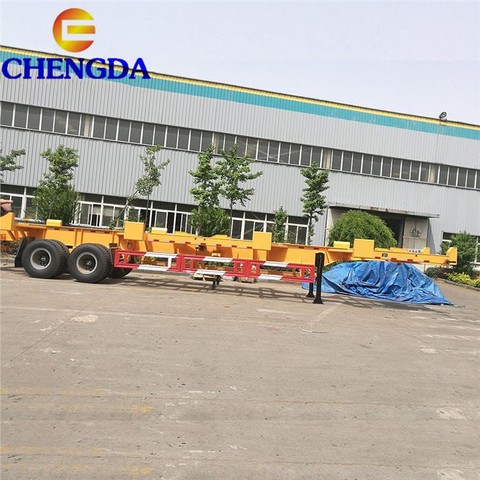

Skeleton Container Semi Truck Trailer Chassis For Africa

Overall Dimension（mm）

12500x2500x1650mm

Wheelbase

9,443mm+1,310mm

Payload

30,000kg

Tare weight

6,000kg

G.V.W.R.

36,000kg

Function

Transport gas tanker

Running System

Main beam

height of the beam is 500mm,

upper plate is 14mm,

down plat is 16mm,

middle plate is 8mm.

Side beam

16#

Axle

2x13Ton ZY brand

Axle Number

2

Tire

12R22.5, 8pcs. Taitong brand

Rim

9.0*22.5 steel disc wheel, 10 holes ISO, 8 pcs

Suspension system

Mechanical Suspension

Steel Spring

10/10  leaf spring with 90mm(W) *13mm(thickness)

Electrical System

Chinese standard 24V lighting system

Brake system

Dual line pneumatic brake, no ABS

Brake air chamber

4 units T30/30 Double brake chambers

Emergency relay valve

Standard

Traction/King Pin

2” and 3.5” removable Kingpin,

bolted in type 500mm from the front face of the front bolster

Landing Gear

Yahua brand 28ton

external two speed telescopic manual operation

2,500mm behind the kingpin location

Accessories

Tool box

1pcs, One crank and one shaft head wrench

Mud guard

Steel mud guard and front mudguard

Spare wheel carriers

2 pcs

Bumper

Rear bumper with adjustable height

Electrical system

1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core electric cable protected by PVC conduit on main frame

Paint

Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. Waxed

Packing

Nude, Polish with wax before shipping
