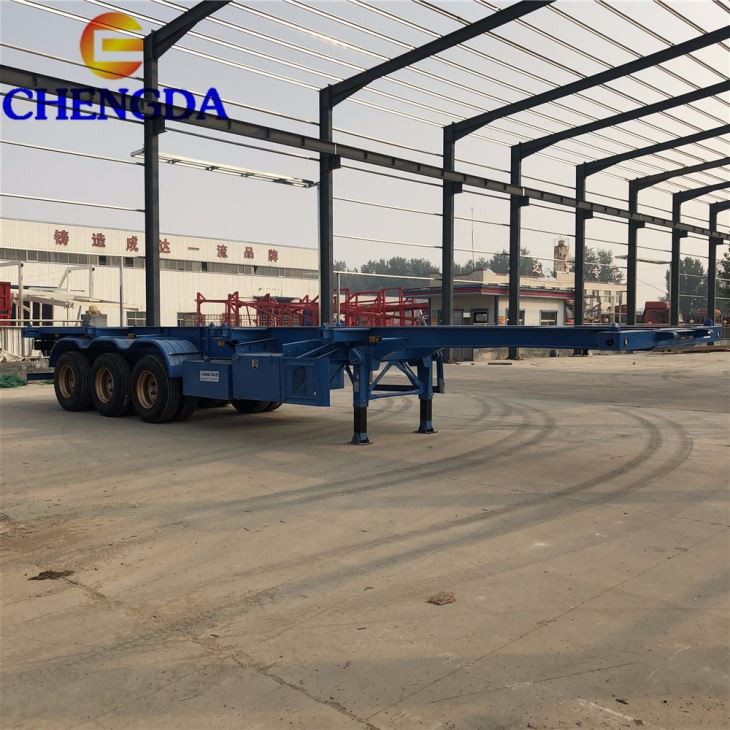

Truck Chassis Frame Manufacturer 3 Axles 20ft Container 40ft Skeleton Trailer
Product Details
Low price truck chassis frame manufacturer 3 axles 20ft container 40ft skeleton trailer
2 Axle Skeleton Semi Trailer
3 Axle Skeleton Semi Trailer
Low price truck chassis frame manufacturer 3 axles 20ft container 40ft skeleton trailer
Dimension and Weight | |
Overall Dimension(mm) | 12500x2500x1650mm |
Wheelbase | 7,500mm+1,310mm+1,310mm |
Payload | 40,000kg |
Tare weight | 6,500kg |
G.V.W.R. | 46,500kg |
Function | transport 1x20ft, 2x20ft, 1x40ft container |
Running System | |
Main beam | height of the beam is 500mm, upper plate is 14mm, down plat is 16mm, middle plate is 8mm. |
Side beam | 16# |
Axle | 3x13Ton ZY brand |
Axle Number | Three |
Tire | 12R22.5, 12 pcs. Taitong brand |
Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
Suspension system | Mechanical Suspension |
Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
Electrical System | Chinese standard 24V lighting system |
Brake system | Dual line pneumatic brake, no ABS |
Brake air chamber | 6 units T30/30 Double brake chambers |
Emergency relay valve | Standard |
Diamond plate | 4mm |
Traction/King Pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
Landing Gear | Yahua brand 28ton external two speed telescopic manual operation 2,500mm behind the kingpin location |
Accessories | |
Tool box | 1pcs, One crank and one shaft head wrench |
Mud guard | Steel mud guard and front mudguard |
Spare wheel carriers | 2 pcs |
Bumper | Rear bumper with adjustable height |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| One set 6-core electric cable protected by PVC conduit on main frame |
Paint | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. Waxed |
Packing | Nude, Polish with wax before shipping |

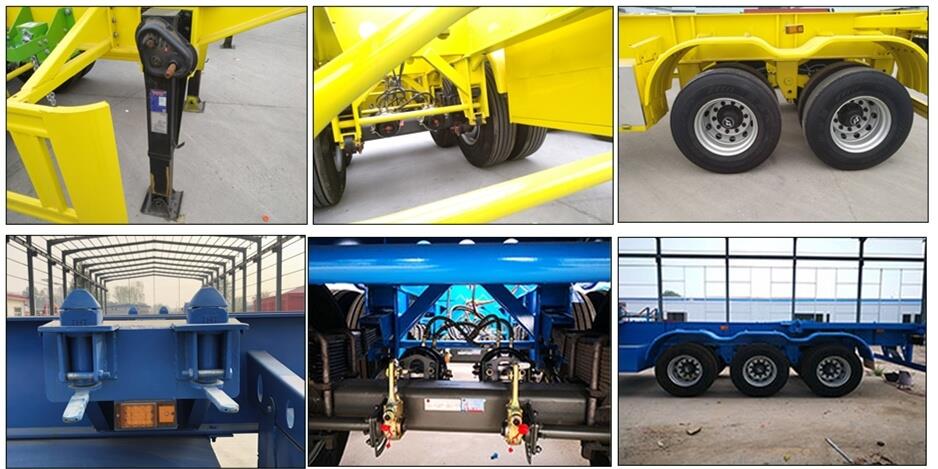

Show Details
1.Does your company is a factory or trade company?
We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
2.Whats the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3. What’s your MOQ?
One unit trailer or truck.
4. How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
bulk or container.
5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
